Single parts, security latchs and accessories
You can also obtain the components individually as spare parts. Please click thumbnails to open full size drawing (PDF) in a new window.
Assembly Tool
Weight: 1.2 kg
- steel galvanized
- for security ring 905.000.187
- locking pins Ø 52 mm
Assembly Tool
Weight: 1.2 kg
- steel galvanized
- for security ring 905.000.190
- locking pins Ø 38 mm
Locking spanner
Weight: 2,0 kg
- to operate clamping nuts
- steel galvanised and painted in RAL 9005 black
Security Ring
Weight: 0.02 kg
- steel galvanized
- for locking pins with
thread TR 38 x 4 mm
Security Ring
Weight: 0.02 kg
- steel galvanized
- for locking pins with
thread TR 52 x 5 mm
Spacer Ring
Weight: 0.15 kg
- steel galvanized
- for inner parts set
905.294.101
Security Latch
Weight: 0.18 kg
- steel galvanized
- for swap body and container technology
Pin for security latch
Weight: 0.10 kg
- raw steel (not primed)
- for security latch 905.159.005
- for welding on
- latch is secured with screw and washer
Pin for security latch
Weight: 0.10 kg
- raw steel (not primed)
- for security latch 905.159.005
- for welding on

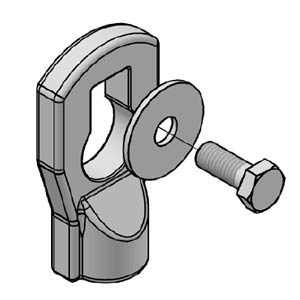

Kit Security Latch complete
Weight: 0.20 kg
- steel galvanized
- for screwing on
- latch, screw and washer
Security Latch complete (WS Volume)
Weight: 0.32 kg
- steel galvanized
- for bolster 100 mm
- for swap systems volume
- latch, screw and washer

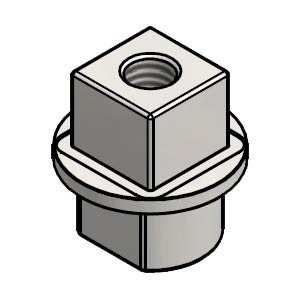

Holder for security latch (square)
Weight: 0.1 kg
- steel raw (not primed)
- for security latch 905.159.001
- for welding on
- fixed with washer and screw
Security Ball
Weight: 0.20 kg
- raw steel (not primed)
- for plateau twist locking systems
Lever
Weight: 0.20 kg
- steel galvanised
- ∅ 13 mm
- for locking pins with 38‘ thread and with toggle lock
Lever
Weight: 0.25 kg
- steel galvanised
- ∅ 19 mm
- for locking pins with 52‘ thread and with toggle lock
Cotter Pin (Safety Linch Pin)
Weight: 0,1 kg
- according to DIN 11024
- steel galvanised
- wire ∅ 4.5 mm
- for toggle 905.000.093
- for telescopic parts 649.130.xxxx with locking pin 649.130.002
Cotter Pin (Safety Linch Pin)
Weight: 0,1 kg
- according to DIN 11024
- steel galvanised
- wire ∅ 3.5 mm
- for toggle 905.000.129
