Locking Pins and Locking Nuts
We offer suitable galvanised locking pins and locking nuts for all our twist locks. If you replace the pins in the version of security rings, please be sure to use a new ring as well. Please click thumbnails to open full size drawing (PDF) in a new window.
Locking Pin
Weight: 4.9 kg
- galvanized steel
- for version with ring
- thread Tr 52 x 5 mm
- 314 mm long
Locking Pin
Weight: 3.1 kg
- galvanized steel
- for version with ring
- thread Tr 52 x 5 mm
- 204 mm long
Locking Pin
Weight: 3.3 kg
- galvanized steel
- for version with lever
- thread Tr 52 x 5 mm
- 215 mm long
Locking Pin
Weight: 2.1 kg
- galvanized steel
- for version with ring
- thread Tr 52 x 5 mm
- 125 mm long
Locking Pin
Weight: 2.2 kg
- galvanized steel
- special version
- thread Tr 52 x 5 mm
- 135 mm long
Locking Pin
Weight: 2.0 kg
- galvanized steel
- for version with lever
- thread Tr 38 x 4 mm
- 205 mm long
Locking Pin
Weight: 1.8 kg
- galvanized steel
- for version with ring
- thread Tr 38 x 4 mm
- 146,5 mm long
Locking Pin
Weight: 2.4 kg
- galvanized steel
- for version with ring
- thread Tr 38 x 4 mm
- 140 mm long
Locking Pin
Weight: 1.6 kg
- galvanized steel
- for version with ring
- thread TR 38 x 4 mm
- 140 mm long

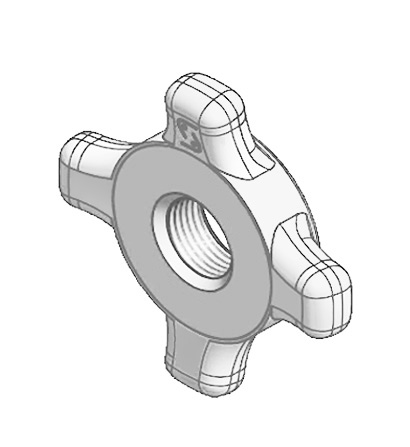

Locking Nut
Weight: 2.8 kg
- galvanized steel
- Ø outside 170 mm
- thread Tr 52 x 5 mm
Locking Nut
Weight: 2.4 kg
- galvanized steel
- Ø outside 170 mm
- thread Tr 52 x 5 mm
Locking Nut
Weight: 1.9 kg
- galvanized steel
- Ø outside 140 mm
- thread Tr 38 x 4 mm
Locking Nut
Weight: 1.7 kg
- galvanized steel
- Ø outside 170 mm
- thread Tr 38 x 4 mm
Locking Nut
Weight: 2.3 kg
- galvanized steel
- Ø outside 170 mm
- thread Tr 52 x 5 mm
Locking Nut
Weight: 1.5 kg
- galvanized steel
- Ø outside 140 mm
- thread Tr 38 x 4 mm
