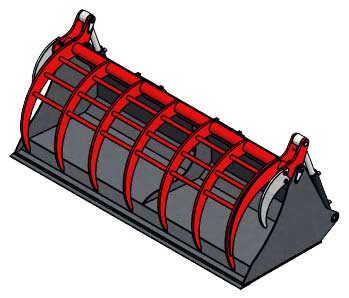

Silage Grab Bucket
Our Silage Grab Buckets are just the right implement in the clamp. The centre of gravity is located close to the tractor hitch. Two high-grade hydraulic rams provide even pressure on both sides. The scope of delivery includes the hydraulic hoses and quick connector BG3. Cause the LP bracket (please order adapter plates separately) they are ideally suitable for front loader, wheel loader or telescopic handler.
Advantages:
- the lower bucket ensures a possible lossless transport of the recording material
- the high opening width of the bucket beyond the edge, with the bucket edge can be moved up head open on a wall
- high quality wear resistant cutting edge of hardened steel 500 HB with additional wear plates on the lower surface
- additional lateral wear plates and stiffenings for more mechanical stability
- bilateral optical position indicator
with LP bracket
Weight: 470 kg
- steel, powder coated
- cutting edge 500 HB
- protective runners
- bucket depth 900 mm
- volume 750 l
- width 1,600 mm
with LP bracket
Weight: 500 kg
- steel, powder coated
- cutting edge 500 HB
- protective runners
- bucket depth 900 mm
- volume 850 l
- width 1,800 mm
with LP bracket
Weight: 525 kg
- steel, powder coated
- cutting edge 500 HB
- protective runners
- bucket depth 900 mm
- volume 950 l
- width 2,000 mm
with LP bracket
Weight: 550 kg
- steel, powder coated
- cutting edge 500 HB
- protective runners
- bucket depth 900 mm
- volume 1,050 l
- width 2,200 mm
with LP bracket
Weight: 610 kg
- steel, powder coated
- cutting edge 500 HB
- protective runners
- bucket depth 900 mm
- volume 1,200 l
- width 2,500 mm
